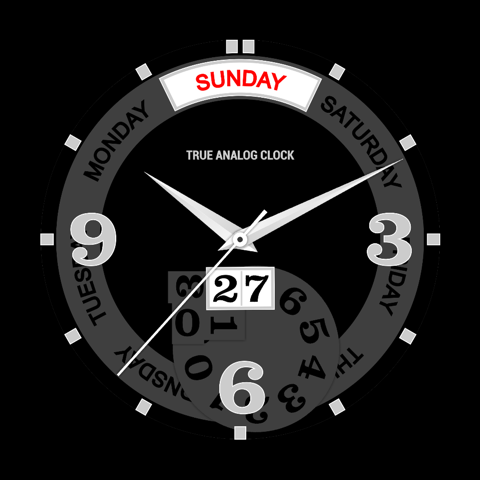

Big Day/Date

Big day/date clock in horology style

Description

Big date and date indicators under semi-transparent skeleton face.

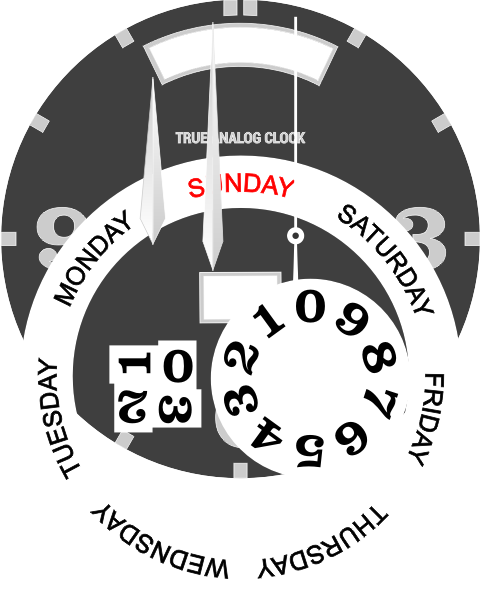

Anatomy

Face with windows for big day and big date imdicators. Day indicator based on standard DayOfWeek hand type. Date indicator classically implemented using two custom hands, controlled manually with pair line of code. Three central hands for time.

XML Settings File

<?xml version="1.0" encoding="utf-8"?>
<TrueAnalogClock
    face="big_day_date_face"
    useSystemTime="true">

    <hand
        image="big_day_date_hand_day"
        axisFacePoint="929:929"
        axisPoint="856:856"
        type="DayOfWeek"
        underFace="true"/>

    <hand
        name="DateUnits"
        image="big_day_date_hand_date_units"
        axisFacePoint="1004:1438"
        axisPoint="387:387"
        shadow="true"
        type="Custom"
        underFace="true"
        valueRange="10"/>

    <hand
        name="DateTens"
        image="big_day_date_hand_date_tens"
        axisFacePoint="773:1236"
        axisPoint="179:179"
        shadow="true"
        type="Custom"
        underFace="true"
        valueRange="4"/>

    <hand
        image="big_day_date_hand_hour"
        axisFacePoint="929:929"
        axisPoint="51:557"
        shadow="true"
        type="Hour"/>

    <hand
        image="big_day_date_hand_minute"
        axisFacePoint="929:929"
        axisPoint="40:846"
        shadow="true"
        type="Minute"/>

    <hand
        image="big_day_date_hand_second"
        axisFacePoint="929:929"
        axisPoint="34:850"
        shadow="true"
        type="Second"/>

</TrueAnalogClock>

Manual code

The code finds custom hands by their names and sets the values.

int day = calendar.get(Calendar.DAY_OF_MONTH);
hands = clock.findHands("DateUnits");
for (Object item : hands) ((TrueAnalogClockHand) item).setValue(day % 10);
hands = clock.findHands("DateTens");
for (Object item : hands) ((TrueAnalogClockHand) item).setValue(day / 10);
