Jump Hour

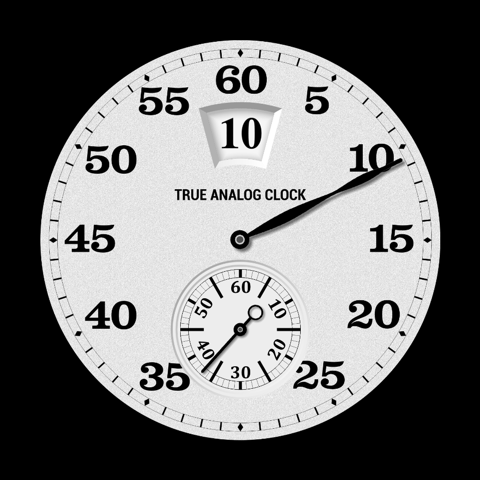

Clock with jump hour horology feature

Description

Clock with hour displayed in digital format through special window on the face.

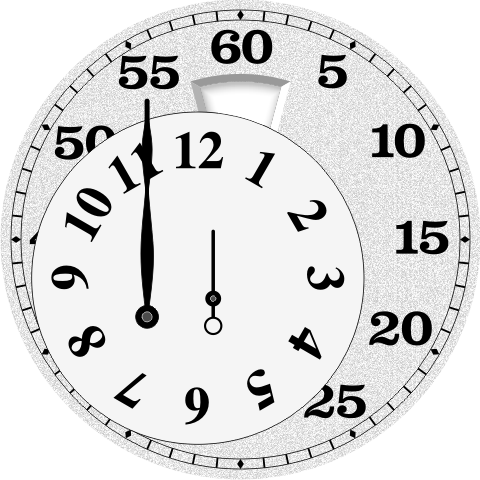

Anatomy

Face with window for hour. Hour hand implemented as disk with jumping and underFace attributes.

XML Settings File

<?xml version="1.0" encoding="utf-8"?>
<TrueAnalogClock
    face="jump_hour_face"
    useSystemTime="true">

    <hand
        image="jump_hour_hand_hour"
        jumping="true"
        axisFacePoint="723:723"
        axisPoint="502:502"
        type="Hour"
        counterclockwise="true"
        underFace="true"/>

    <hand
        image="jump_hour_hand_minute"
        axisFacePoint="723:723"
        axisPoint="37:655"
        shadow="true"
        shadowBlurRadius="6"
        shadowOffset="10:10"
        type="Minute"/>

    <hand
        image="jump_hour_hand_second"
        axisFacePoint="723:1046"
        axisPoint="29:209"
        shadow="true"
        shadowBlurRadius="5"
        shadowOffset="5:5"
        type="Second"/>

</TrueAnalogClock>

Manual code

No.
